Description

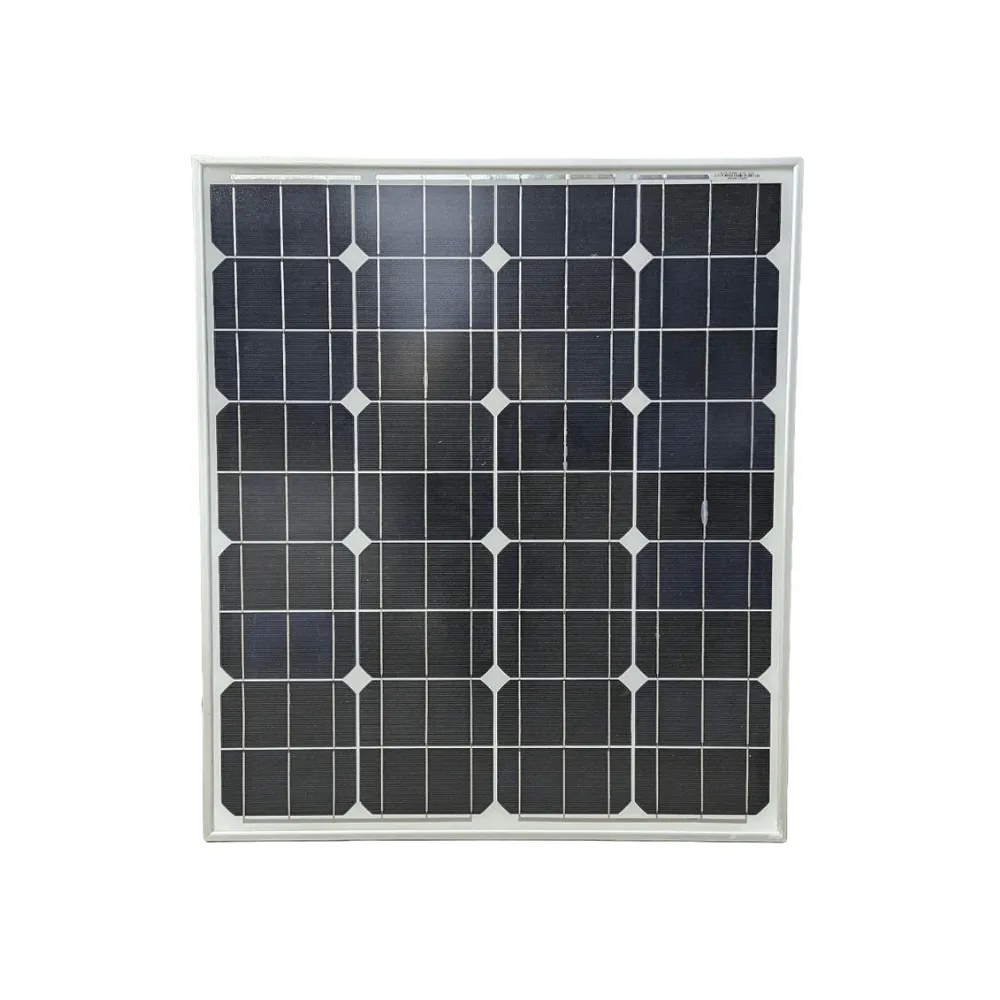

70W Mono Cell PV Solar Panel is a Tier One product featuring outstanding performance and mechanical warranties. Delivered anywhere in New Zealand.
AA Solar panels have the following:
- 25-year warranty for 80% of output.
- 10-year warranty for 90% of output.
- 10-year limited mechanical warranty.
Maximising Output
Even with the best solar panels on the market, getting the maximum energy production out of them requires using the correct solar charge controller. We recommend MPPT Solar Charge controllers over PWM. The main difference between the two types of charge controllers is that the MPPT solar charge controller is more efficient than a PWM solar charge controller. Currently, the MPPT solar charge controller is the most common type of charge controller and can gain you up to 30% more power than the PWM controllers.
Another critical aspect of maximising your panels' performance is keeping them clean. We recommend a regular wash using simple washing up liquid and water.
Specifications
| Feature | Specification |
| Cell Type | Mono Crystalline Silicon, Photo Voltaic Solar Cells |
| Dimension of Module (mm) | 776mmL x 675mmW x 35mmH |
| Weight of Module | 6.5kg |
| Maximum Power at STC* (PMAX) | 70W |
| Open-Circuit Voltage (VOC) | 22.0V |
| Short-Circuit Current (ISC) | 4.24A |
| Voltage at PMAX (VMP) | 17.7V |
| Current at PMAX (IMP) | 4.24A |
| Maximum System Voltage | 1000VDC |
| Operating Temperature | -40 to 85C |
| Cable | 4mm2 |
| Cable Lengths | 800mm |
| Connector | MC4 Plug |
More Info
Solar Panel Selection:
AA Solar has been supplying Solar Panels to the New Zealand market for over 20 years. Over this time, we have used, researched and tested many solar panels from a variety of manufacturers and believe their range today is the best quality Grade panels that can be found. Our extensive first-hand experience with these panels over the years proves that they will perform as per specification over their 25-year life span. In addition, AA Solar backs these products with warranties so our customers can enjoy the benefits and peace of mind knowing that your 70W Mono Cell PV Solar Panels can be relied on now and for many years.
