BougeRV 44PCS Solar Connector with Spanners IP67 Waterproof Male/Female
BougeRV's 44pcs Solar Connector with Spanners is that perfect set to suit your quest for green energy. These connectors are made of high-quality materials to ensure long-term durability and are heavier and sturdier than comparable products on the market. Intended for connecting photovoltaic solar systems with high mechanical requirements and in harsh weather conditions, there are enough and more pairs to complete your solar system, includes fully adapted spanners for easy installation.
Specifications:
Rated Current: 30A (2.5-4.0mm²）
Rated Voltage: DC1000V
Contact Resistance: ≤0.5mΩ
Operating Temperature range: -40℃ until 221℃

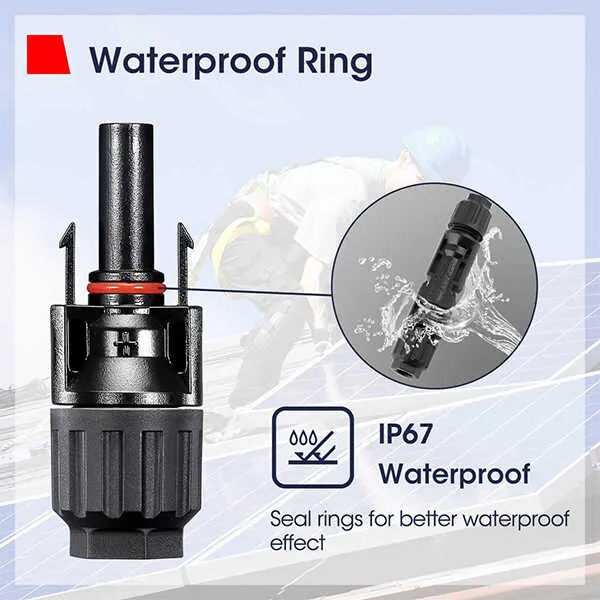

Degree of Protection: IP67
Flame Class: UL94-V0
Safety Degree: Ⅱ

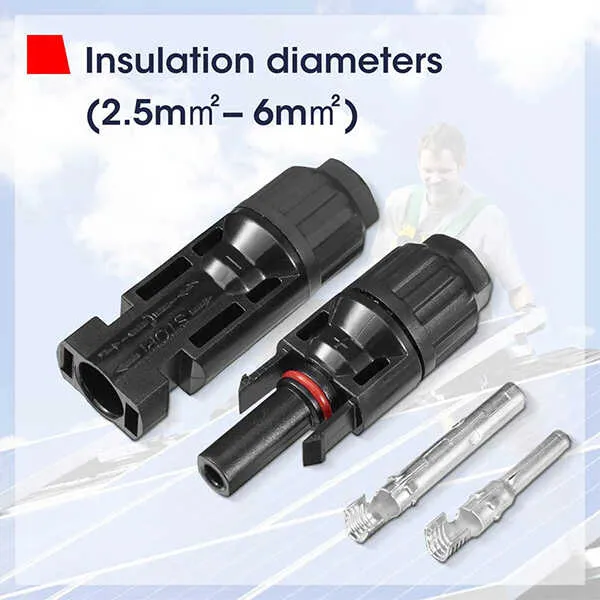

Suitable Cable: AWG 14/13/12/11/10
Adapter Wire: OD 5mm-7mm
Insertion Force: <=50N
Withdrawal Force: >=50N

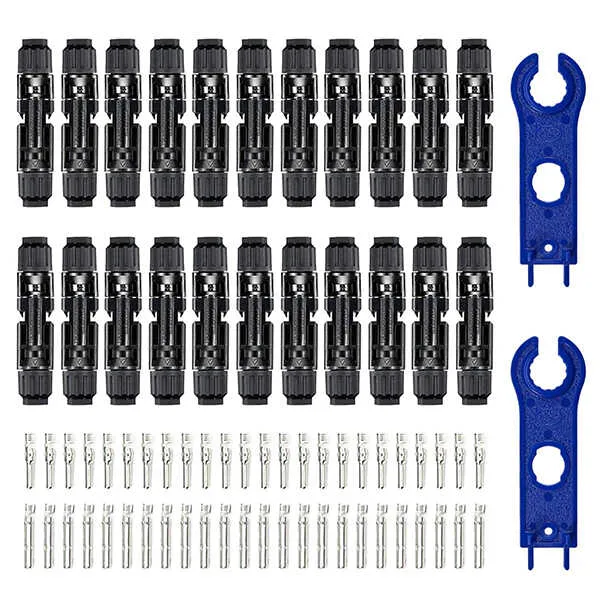

What's in the Box:

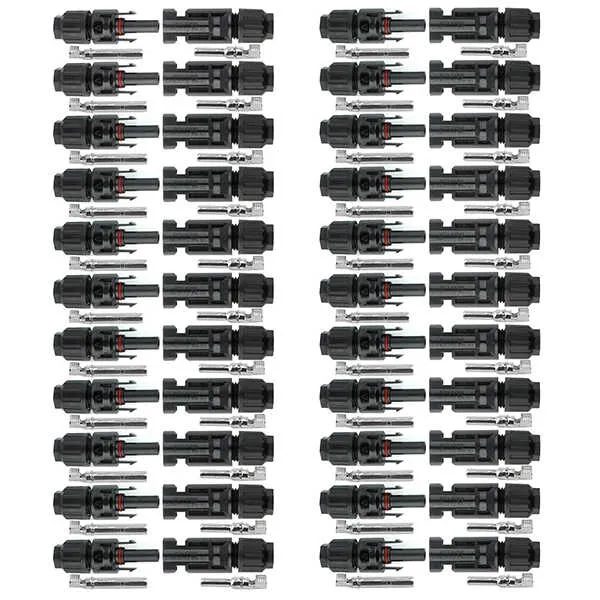

22 x Male Solar Connectors (with solar connector pins)
22 x Female Solar Connectors (with solar connector pins)
2 x Solar Connector Spanners
